117-1000MHz 1IN 10OUT POI RF Splitter And -40°C- 80°C Temperature Range

Brand Name : Vinncom

Model Number : VN-POI-1IN10OUT-0.1-1G-INF

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Frequency Range : 117-1000MHz

Operating Temperature : -40°C~+80°C

VSWR : ≤1.35

Contact Now

117-1000MHz 1IN 10OUT POI

  • Good VSWR
  • High isolation
  • ROHS Compliance

VN-POI-1IN10OUT-0.1-1G-INF.pdf

Part Number VN-POI-1IN10OUT-0.1-1G-INF
Operating Frequency ( MHz ) 117-1000
Impedance ( Ohm ) 50
VSWR ≤1.35
Insertion Loss (dB) ≤14
Isolation (dB) ≥13
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) 50
Reversing Power Handling (Watt) 2

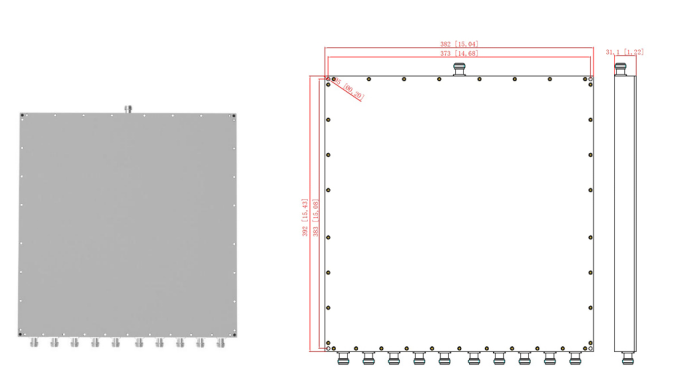

Dimension (mm)(L×W×H, excl connector) 392*382*31.1
ROHS Compliance Yes

117-1000MHz 1IN 10OUT POI RF Splitter And -40°C- 80°C Temperature Range
