Dielectric 3x3 Hybrid RF Antenna Combiner Customized

Name: Dielectric 3x3 Hybrid RF Antenna Combiner Customized
Brand: Vinncom
Price: 1 USD

Quality Dielectric 3x3 Hybrid RF Antenna Combiner Customized for sale

Brand Name : Vinncom

Model Number : VN-HC3x3-0738-OP

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 60pcs per day

Frequency : 698-2700MHz 698-3800MHz

Connector : N Female

Color : Customized

OEM/ODM : Acceptable

Low PIM : -160dbc

Application : DAS IBS

ROHS : Compliance

Design : Wide Band

Contact Now

698-3800MHz 4.3-10 Mini DIN Female Low PIM 3 In 3 Out 3x3 Hybrid Coupler Combiner For DAS IBS

High isolation
Good PIM up to -160@43dBm*2
Good VSWR at all ports

Part Number	VN-HC3x3-0738-OP
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Insertion Loss (dB)	5.1±1
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500

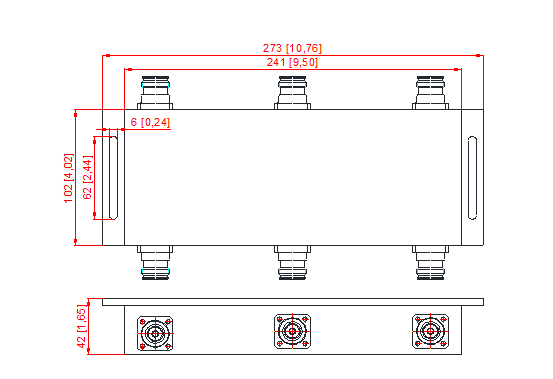

Dimension (mm)(L×W×H, excl connector)	241 × 102 × 40
Net Weight (g)	2200 ± 20
Packing Dimensions (mm,L×W×H)	340 × 225 × 85
Packing Carton Size (mm,L×W×H)	475 × 350 × 285
ROHS Compliance	Yes

Dielectric 3x3 Hybrid RF Antenna Combiner Customized

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,

3in 3out ,and 4in 4out for different usage and customized products also welcomed .
