DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: DIN Female Hybrid PIM RF Antenna Combiner 25002690MHz 4 To 1 150dBc
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-CB4X1-0727-OD

Certification : RoHS

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, D/A, D/P, L/C

Supply Ability : 50pcs per day

Delivery Time : depends on your quantity

Packaging Details : box/carton

Insertion loss : 698-960≤0.25 dB 1710-1880≤0.4 dB 1920-2170≤0.4 dB 2500-2690≤0.3dB

Return loss : ≥18dB

Low&High Band Rejection : ≥50dB

Impedance( Ohm ) : 50

Input power : ≤150 W(avg.)

Inter modulation : ≤-150 dBc with 2tone × 20W

Contact Now

698-960,1710-1880,1920-2170,2500-2690 MHz DIN Female 4 to 1 combiner PIM-150dBc

Part Number	VN-CB4X1-0727-OD
Operating Frequency ( MHz )	698-960,1710-1880, 1920-2170,2500-2690 MHz
Insertion loss	698-960≤0.25 dB 1710-1880≤0.4 dB 1920-2170≤0.4 dB 2500-2690≤0.3dB
Return loss	≥18dB
Low&High Band Rejection	≥50dB
Impedance( Ohm )	50
Input power	≤150 W(avg.)
Inter modulation	≤-150 dBc with 2tone × 20W
DC/AISG	N/A
Lightning protection	3KA；10/350us pulse
Relative humidity	0~95%
Application	Outdoor (IP67)
Interface	DIN(Female)
Operating Temperature( ℃ )	-20°C to +55°C
Weight	4.0kg

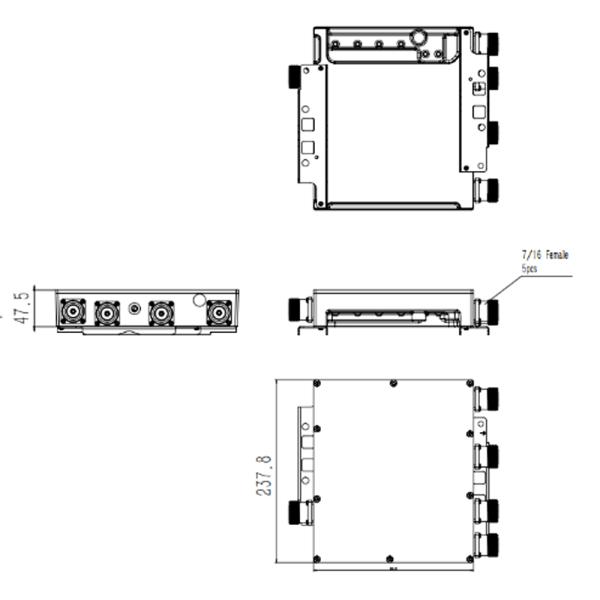

Dimensions(mm,L×W×H,excluding connector)	208237.847.5 mm(One unit； without connector and mounting brackets)
